Quick Details

  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: NFL
  • Model Number: W11S W11 W12
  • colour: green, grey,red, blue

Packaging & Delivery

Packaging Details: wooden case
Delivery Detail: 15 days

Specifications

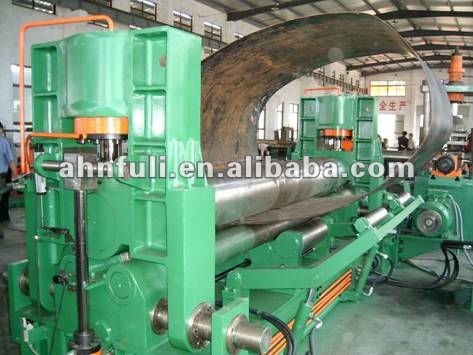

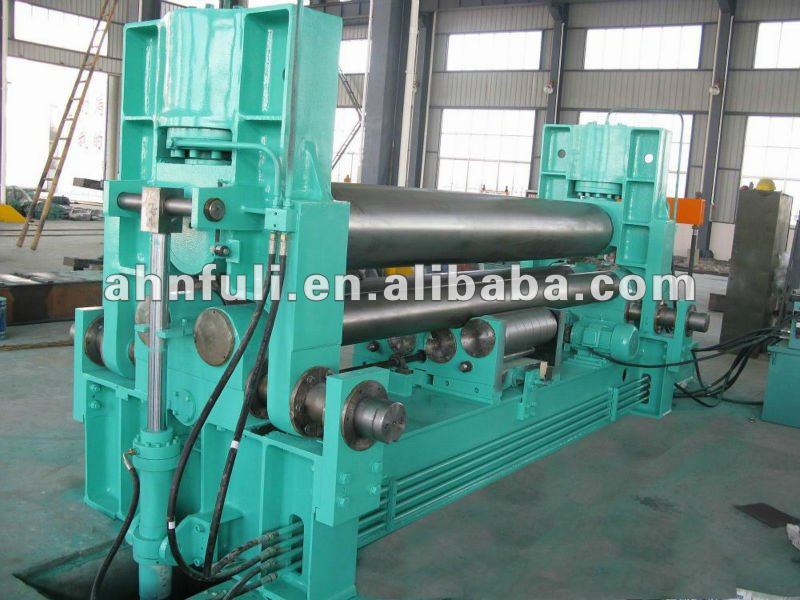

W11S upper roller universal plate rolling machine
3-roller bending rolling machine
Best price in China with CE

1. High-precision end pre-bend, the end of pre-bending freely set the length of straight edge, upper roller press down with certain pressure to implement high-precision end pre-bending.
2. Salience precision products: Persistting bending high-precision resulting in superior accuracy of products; The roller drum shape can adjust the plate from thin to thick for your ideal needing.
3. The use of different methods of the corresponding control: According to use, have the following control methods:
TNC (on NC), a small amount of multi-species production.
T & BNC (upper and lower NC), less mass-produced varieties used.
CNC (CNC), a large number of multi-species production.
4. CNC control of the production of high-efficiency: One-person simple operation, efficiency increases.
5. Rich bending shape: With rolling O-, U-type, multi-paragraph R, such as different shapes, their method:
O-bend: Rear bending way.
U-bending: Front bending way.
Special bending: Combination way.
SpecificationPressure on upper roller TonsMax.rolling thickness

Max.rolling width mm

Upper roller diameter mmLower roller diameter mmCentre distance mm Motor kw
End mmCentre mmDriceOil pressureMove
W11S-15*200075121520002551502457.541
W11S-14*250075101425002701502457.541.1
W11S-13*30007591330002901502457.541.1
W11S-17*250010013172500300165270155.51.5
W11S-15*300010011153000325165270155.52
W11S-20*250013016202500330180300155.52.2
W11S-18*300013014183000350180300155.52.2
W11S-22*25001601822250036020033018.57.52.2
W11S-20*30001601620300037520033018.57.52.2
W11S-18*35001601418350039020033018.57.54
W11S-24*250019021242500380220360227.54
W11S-22*300019019223000400220360227.54
W11S-19*350019016193500410220360227.54
W11S-29*25002302529250041023538030114
W11S-27*30002302227300042523538030114
W11S-25*35002302125350044023538030114
W11S-33*25002702833250043025040030114
W11S-30*30002702530300045025040030114



SpecificationPressure on upper roller TonsMax.rolling thicknessMax.rolling width mmUpper roller diameter mmLower roller diameter mmCentre distance mmMotor kw
End mmCentre mmDriveOil pressureMove
W11S-28*35002702328350047025040030114
W11S-25*40002702025400049025040030114
W11S-36*25003203036250046026042037155.5
W11S-32*30003202832300048026042037155.5
W11S-28*35003202528350050026042037155.5
W11S-26*40003202226400052027542037155.5
W11S-39*25003803539250050027546045225.5
W11S-35*30003803235300051027546045225.5
W11S-32*35003802832350053027546045225.5
W11S-30*40003802530400055029046045225.5
W11S-43*25004304043250052029050055227.5
W11S-38*30004303538300054029050055227.5
W11S-36*35004303036350056029050055227.5
W11S-32*40004302832400058029050055227.5
W11S-TNC-15*2000Same as above
W11S-TNC-32*4000 W11ST&BNC-15*2000
W11ST&BNC-32*4000
Same as above
